Gadgets hub · iOS UI verification
How it was run
| Build | The three stacked branches plus fix/3708-drafts-row merged into one local verification branch, Dev scheme, staging backend, guest session. |
|---|---|
| Flags | Launched with --uitesting --feature-flag-apps_hub_experiment:c --feature-flag-simplification_experiment:control, so the Apps tab lands on Gadgets inside the tab-bar shell. |
| Simulators | iPhone 17 Pro Max · iOS 26.1 · 440pt (the widest phone) and iPhone X · iOS 16.2 · 375pt (the narrow phone the rail fix on #3704 targets). |
| Method | The analyser reads the accessibility tree (element ids, text, bounds) and drives taps and scrolls by element id; screenshots are the visual record, Figma frames sit beside them. |
Summary
| Check | Pro Max 440pt | iPhone X 375pt | Notes |
|---|---|---|---|

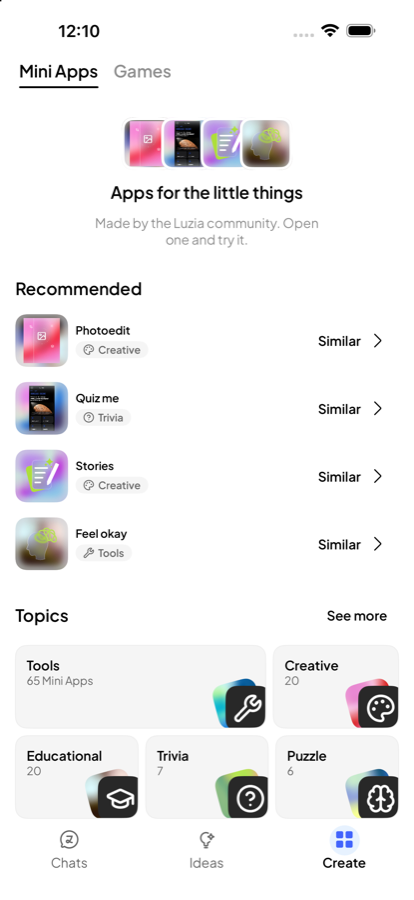

| New viewer hub: cover fan, intro copy, Recommended as a list with Similar, Topics grid | pass | — | Guest with no history on the Pro Max |

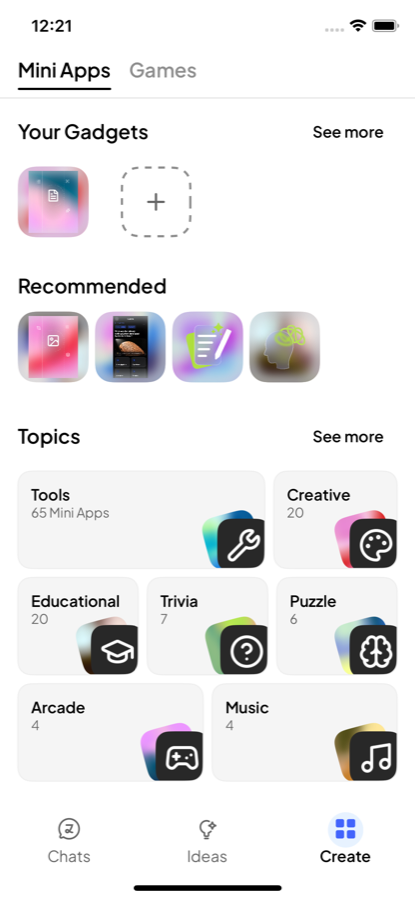

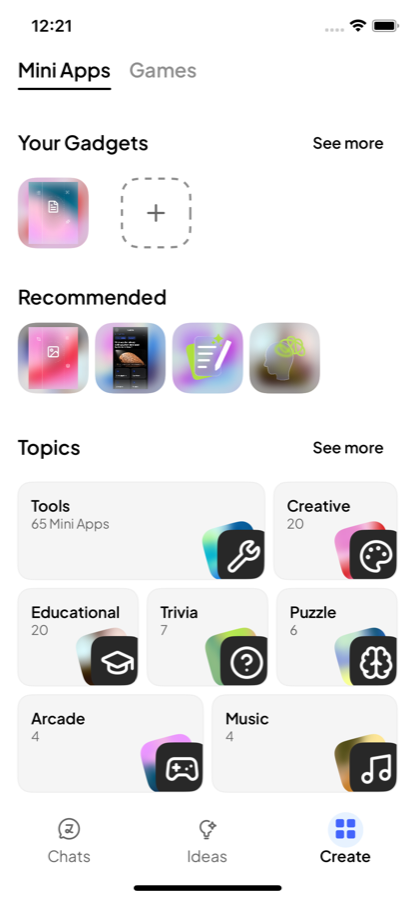

| Returning viewer hub: Your Gadgets rail with the create tile, Recommended as a row, Topics grid | — | pass | The iPhone X guest had one recently used tool, which gives the rail one tile |
| Rail and Recommended row fit the column on a 375pt phone (the blocking finding on #3704) | pass | pass | Tiles step down to the medium size; the rightmost tile ends inside the 16pt margin |

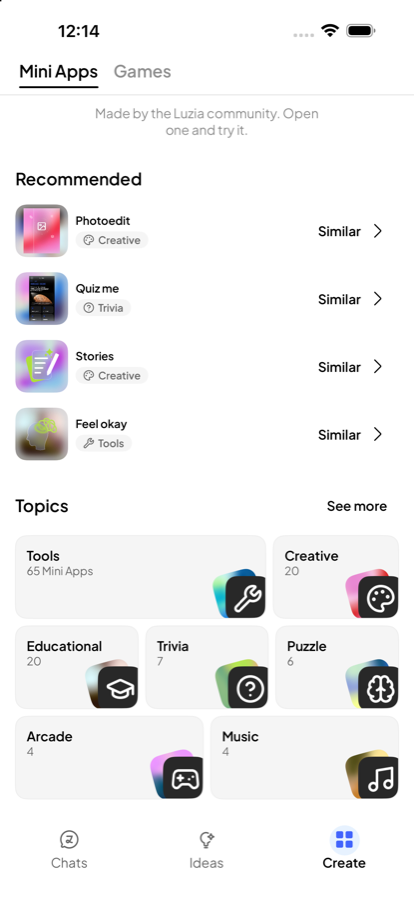

| Topics grid: seven cards in 2/3+1/3, thirds, halves; rank-1 card spells the unit | pass | pass | "65 Mini Apps" on Tools, bare counts elsewhere |
| Tapping a topic card opens the topic screen with the grid's count | pass | pass | Header reads "Tools · 65 Mini Apps" |
| Similar on a Recommended row opens the row's topic | pass | — | Photoedit → Creative |

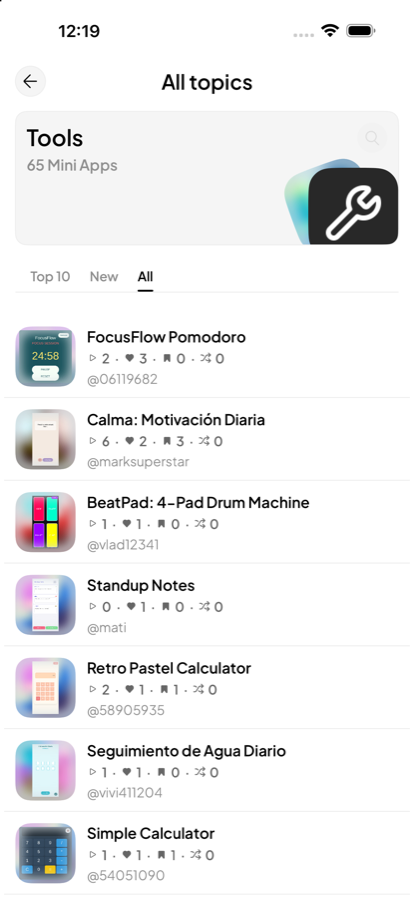

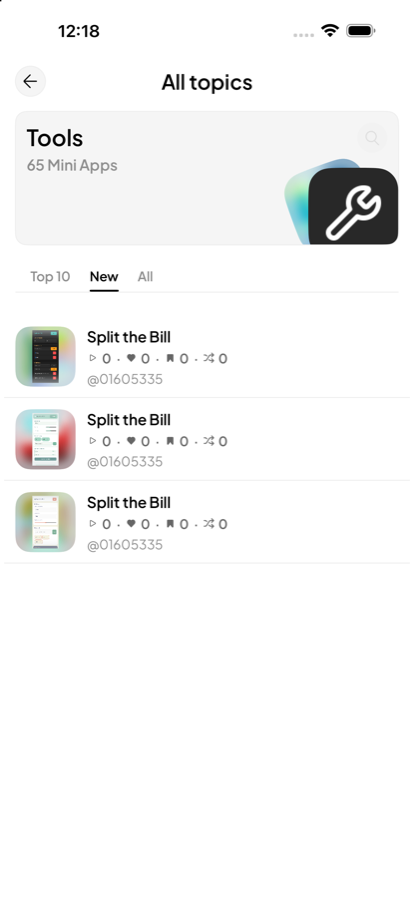

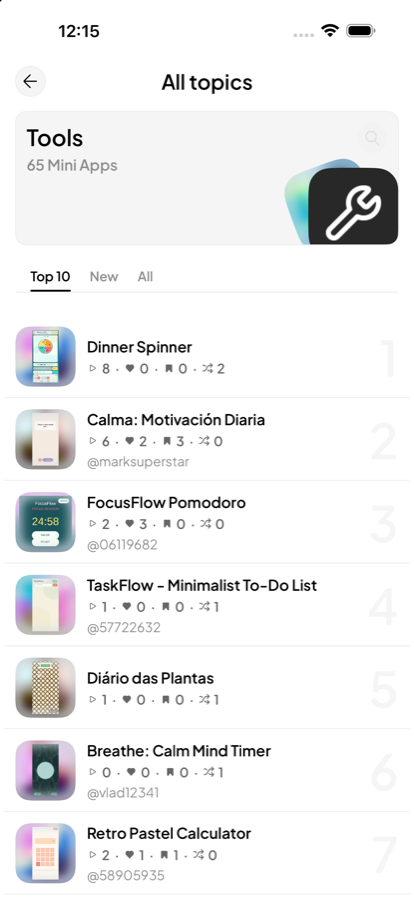

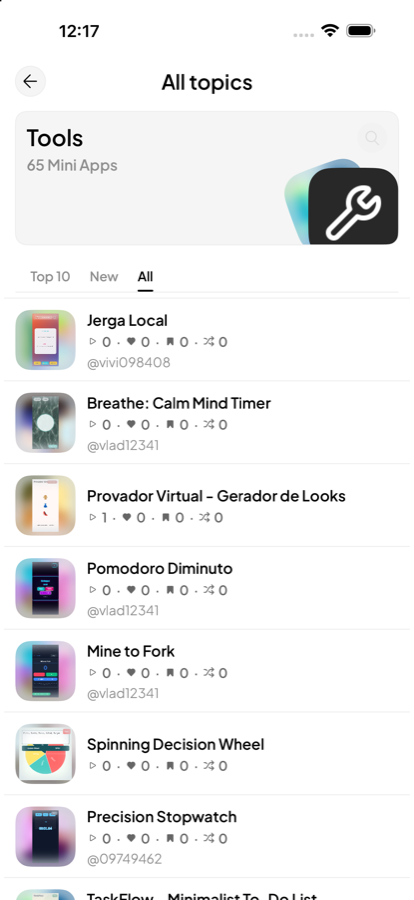

| Topic tabs keep their own lists; Top 10 ranks its rows; All pages on scroll | pass | — | All grew from 1 page to 2 after scrolling to the end |
| Topic screen search button drawn disabled | pass | pass | Until search within a topic has a design |
| Topic screen child identifiers reachable (back, header, tabs) | fixed | pass after fix | See finding 1 |
| Your Gadgets with drafts (dashed line), From your conversations, My Gadgets tabs (#3709) | not covered | Need a signed-in account with content on these simulators | |
Findings
1 · Topic screen identifiers were unreachable fixed on #3707
The analyser reported the back button, the header card and the three tabs all under the root's gadget_topic_view identifier: the root's accessibilityIdentifier overwrote its children's. A UI test could not have reached any of them. Fixed by making the root a container (.accessibilityElement(children: .contain)), commit b896aca11; re-read after the fix shows gadget_topic_back, gadget_topic_header, gadget_topic_search and LDSTabUnderline.top / .new / .all.
2 · Copy differs from the frames because Phrase does note
- The hub's segments read Mini Apps and Games (
apps_hub_tab_gadgets/apps_hub_tab_games); the frames say Game and Gadgets. - Section links read See more (
common_see_all); the frames say See all. - The intro line under the fan reads "Made by the Luzia community. Open one and try it." — the key's value was edited in Phrase after the frame.
3 · Four recommendations, not five backend
The fan, the Recommended list and the Recommended row all show four gadgets. The client keeps up to five (#3704); the landing payload sends four, as agreed on #3663. The fifth row or tile depends on the backend raising its count.
4 · Narrow phone pass
On the 375pt column the rail and the Recommended row take the medium tile with the spread gap; on 440pt the rail would take the big tile. Measured from the accessibility bounds on the iPhone X: the last Recommended tile ends at 292pt of a 375pt screen, the Tools card ends at 244pt and the Creative card at 364pt, all inside the 16pt margins. (Bounds include the tile's glass rim and the card's bleeding artwork, so they read a few points larger than the frames.)
Screens
New viewer hub

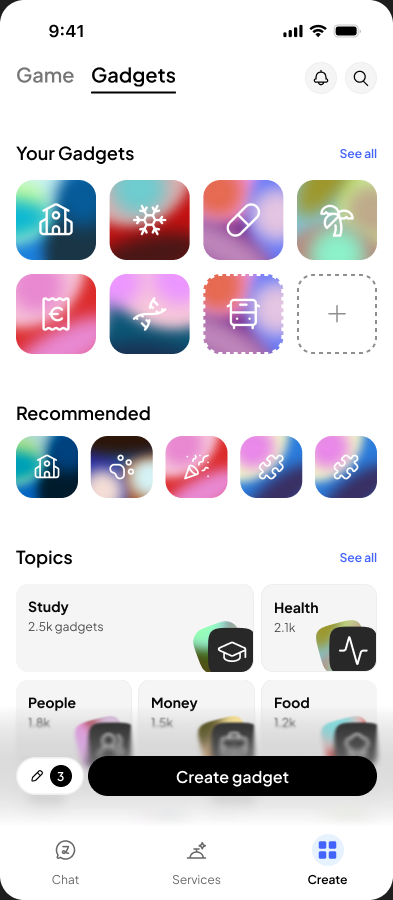

Returning viewer hub

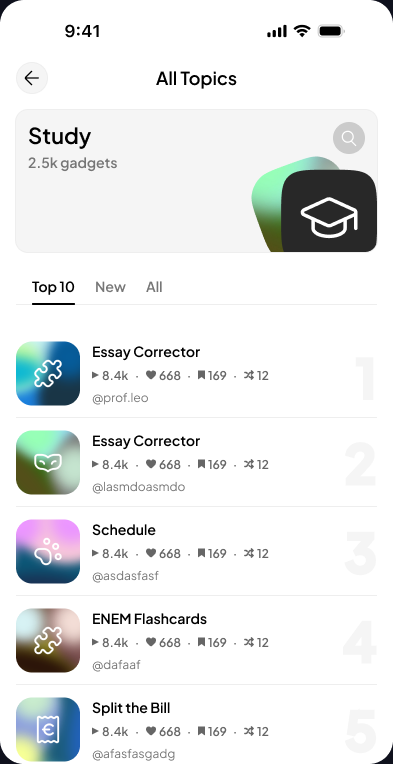

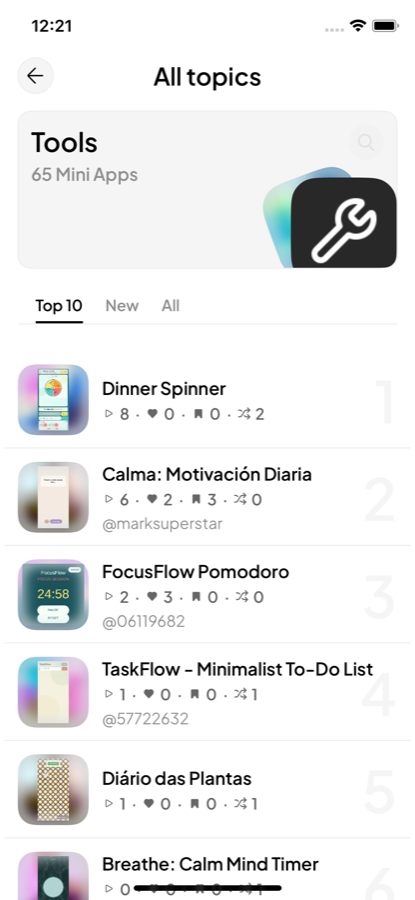

Topic screen
Not covered here

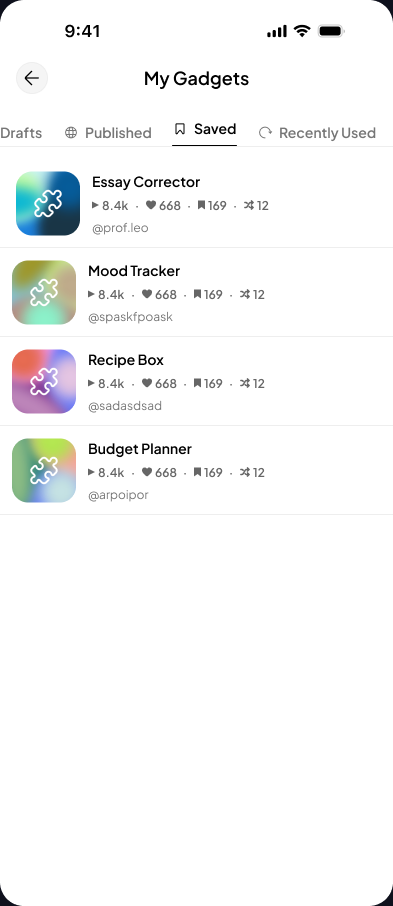

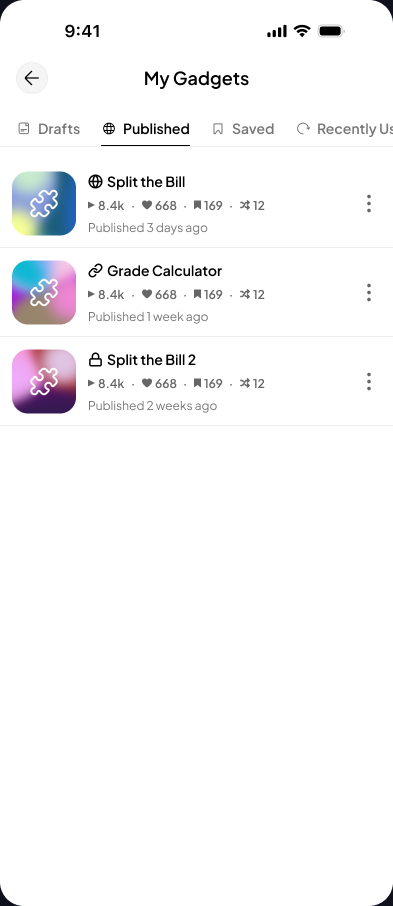

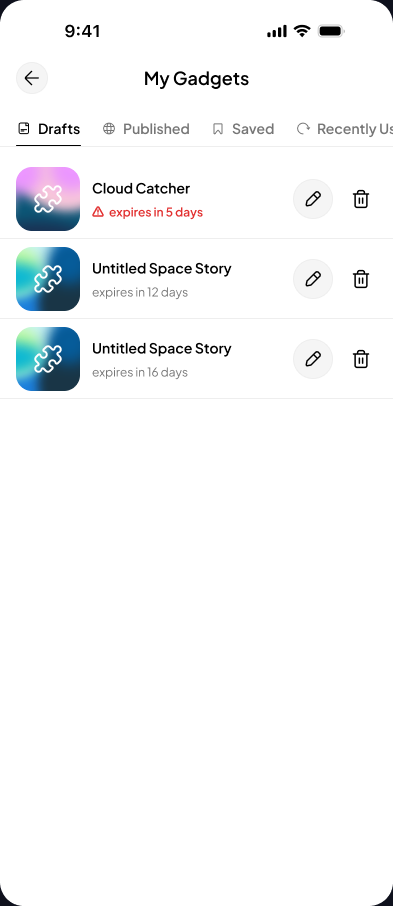

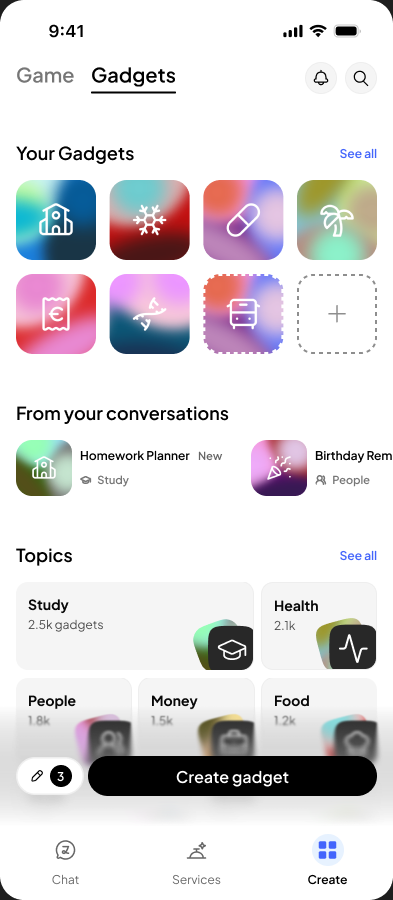

The signed-in states need an account with content on these simulators: the rail with drafts (dashed line) and the audience glyphs, From your conversations, and the four My Gadgets tabs from #3709. The Figma frames for those are below for reference; the simulator captures Matias took on 2026-09-24 are attached to #3709.
